A DRY



A DRY

Product Code: 16

•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration system for energy efficiency
•  Compact, modular design for easy installation
•  Smart controller with LED display for real-time monitoring
•  Fast servicing with removable desiccant columns
•  High durability and low maintenance costs

  • Product Information
  • Technical Specification

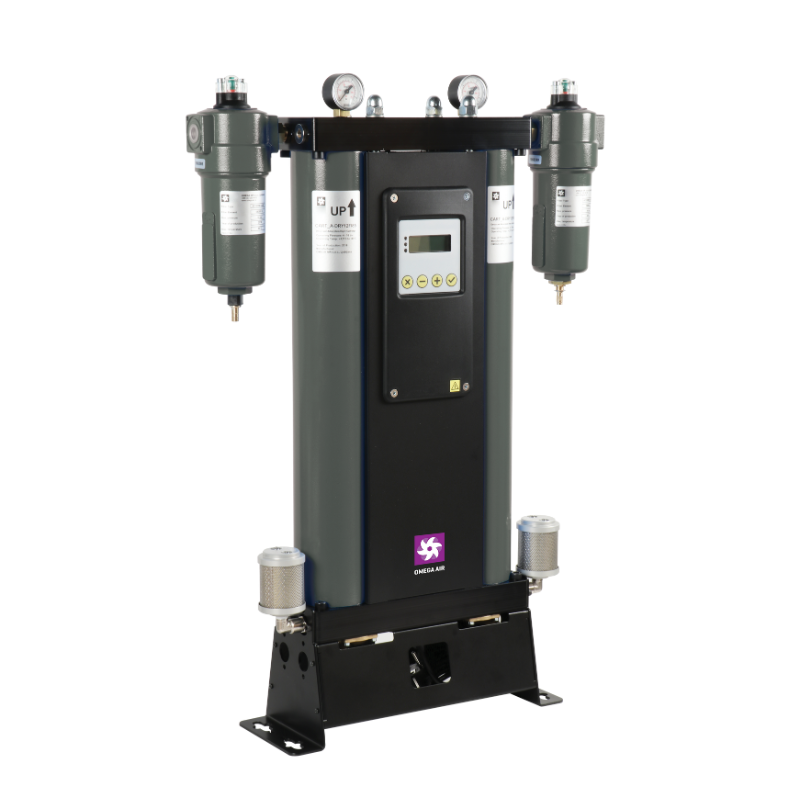

The A-DRY Desiccant Adsorption Dryer is a high-efficiency drying solution designed to remove moisture from compressed air and achieve ultra-low pressure dew points as low as -70°C. Engineered for reliable and continuous operation, this dryer uses dual adsorption columns filled with desiccant to effectively separate water vapor from the air.

With a wide flow rate range of 6 Nm3/h to 200 Nm3/h, the A-DRY series offers versatile drying solutions for industrial applications. Its compact and modular design allows for easy installation, servicing, and maintenance while ensuring consistent air quality.

Key Features of A-DRY Adsorption Dryers


•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration system for energy efficiency
•  Compact, modular design for easy installation
•  Smart controller with LED display for real-time monitoring
•  Fast servicing with removable desiccant columns
•  High durability and low maintenance costs


Technical Specifications


• Operating Pressure: 4 to 16 bar.
• Operating Temperature Range: 1.5°C to 50°C.
• Flow Rate: 6 to 200 Nm3/h.
• Standard Color: RAL 5012.
• Average Compressed Air Consumption: 15-20%


Applications of A-DRY Adsorption Dryers

The A-DRY adsorption dryer is ideal for applications requiring extremely dry compressed air, especially where freezing or high air purity is necessary:

•  Outdoor compressed air systems (prevention of freezing)
•  Food & Beverage Industry (process air compliance)
•  Pharmaceutical & Medical Applications (high-purity air)
•  Electronics & Semiconductor Manufacturing (moisture-sensitive environments)
•  Chemical & Petrochemical Industry (process air drying)


How Does the A-DRY Adsorption Dryer Work?

The A-DRY adsorption dryer operates with dual desiccant columns, alternating between adsorption and regeneration cycles:

• Adsorption Cycle: Moisture is absorbed by the desiccant in one column while the other regenerates.
• Regeneration Cycle: A portion of dry compressed air is used to remove moisture from the desiccant, ensuring continuous operation.
• Switch-Over Process: The system automatically switches between the columns without pressure drops, maintaining uninterrupted airflow.

Operating Modes The A-DRY adsorption dryer offers multiple operating modes for efficiency:

• Fixed Cycle Mode: Standard timer-controlled switchovers, reducing wear and optimizing air consumption.
• Variable Cycle Mode (Dew Point Dependent): Smart sensor-controlled switchovers based on real-time dew point readings, reducing purge air consumption to below 3%.
• Stand-By Mode: Allows air to pass freely through both towers when the system is inactive, maintaining efficiency and reducing energy waste.


Why Choose the A-DRY Adsorption Dryer from Nitrogenium?


• Industry-leading moisture removal with ultra-low dew points
• Highly efficient regeneration system for reduced energy consumption
• Modular design for simple installation and servicing
• Reliable performance in demanding industrial applications
• Smart control system for optimal drying efficiency


Model Connection IN & OUT Inlet flow [m³/h] Outlet flow [m³/h] Height A(A*) [mm] Width B(B*) [mm] Width D(D*) [mm] Depth C(C*) [mm] Mass [kg] Vessel Vol (6) [l] Filter
A-DRY 06 G 3/8” 6 4,7 339 (520) 280 (480) 354 100 (130) 10,5 1,30 AAF 0056
A-DRY 12 G 3/8” 12 9,5 573 (715) 280 (480) 354 100 (130) 13,5 2,17 AAF 0056
A-DRY 24 G 3/8” 24 19,0 1041 (1105) 280 (480) 354 100 (130) 19,0 3,89 AAF 0056
A-DRY 36 G 3/8” 36 28,4 1364 (1500) 280 (480) 354 100 (130) 27,5 5,61 AAF 0056
A-DRY 60 G 3/4” 60 47,4 972 (1105) 370 (570) 434 148 (160) 45,0 9,95 AAF 0076
A-DRY 75 G 3/4” 75 59,3 1167 (1300) 370 (570) 434 148 (160) 53,0 12,2 AAF 0076
A-DRY 105 G 3/4” 117 83,0 1567 (1700) 370 (570) 434 148 (160) 70,0 16,6 AAF 0106
A-DRY 150 G 1” 150 118,5 1345 (1440) 440 (725,5) 570 198 (240) 170,5 26,3 AAF 0186
A-DRY 200 G 1” 200 158,0 1538 (1655) 440 (725,5) 570 198 (240) 182,2 31,2 AAF 0186
