Product Code: 29

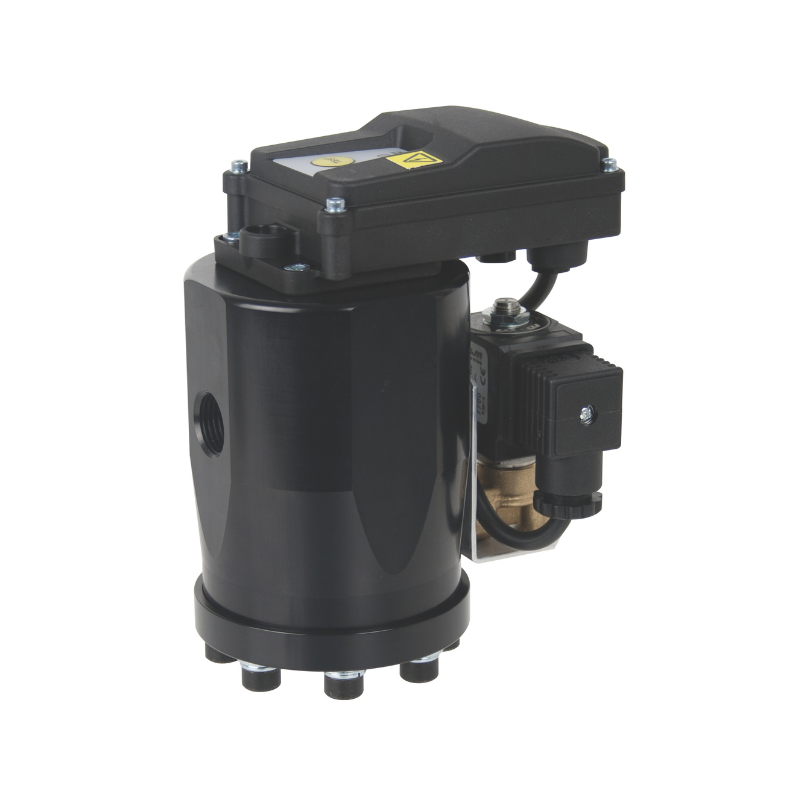

The EMD HP Electronic Condensate Drain is a high-pressure, fully automatic drainage systemdesigned for the efficient removal of condensate and non-aggressive fluids from compressed air systems operating at up to 50 bar. Engineered for zero air loss, this drain helps maintain energy efficiency and system reliability.
Equipped with a precise capacitive level sensor, the EMD HP drain ensures automatic discharge without wasting compressed air. The self-cleaning direct-acting valve guarantees reliable, maintenance-free operation, while the LED indicator, test button, and operation alarm (version A) enhance system monitoring and diagnostics. The Service Network version (version C) offers advanced parameter settings, operational memory storage, and remote diagnostics.
• High-pressure condensate discharge for systems up to 50 bar
• Capacitive level sensor for accurate fluid detection
• Self-cleaning direct-acting valve for maintenance-free operation
• LED indicator, test button, and alarm system (version A) for real-time monitoring
• Service Network version (version C) for advanced diagnostics & memory storage
• Durable & compact design for industrial applications
• Operating Pressure: Up to 50 bar
• Drain Capacity: 30.4 l/h
• Connections: 1⁄2” BSP/NPT
• Operating Temperature Range: 1.5°C to 65°C
Applications of EMD HP Electronic Condensate Drains The EMD HP series condensate drain is ideal for high-pressure compressed air systems, preventing moisture-related inefficiencies in:
• Air Compressors (Piston & Screw)
• After-Coolers
• Cyclone Condensate Separators
• Pressure Vessels/Air Tanks
• Compressed Air Dryers
• Compressed Air Filters
• Designed for high-pressure applications, ensuring optimal system efficiency
• Zero air loss operation, reducing compressed air wastage & energy costs
• Reliable and durable construction, optimized for industrial conditions
• Smart monitoring with Service Network option for enhanced diagnostics
• Ideal for various compressed air system components
