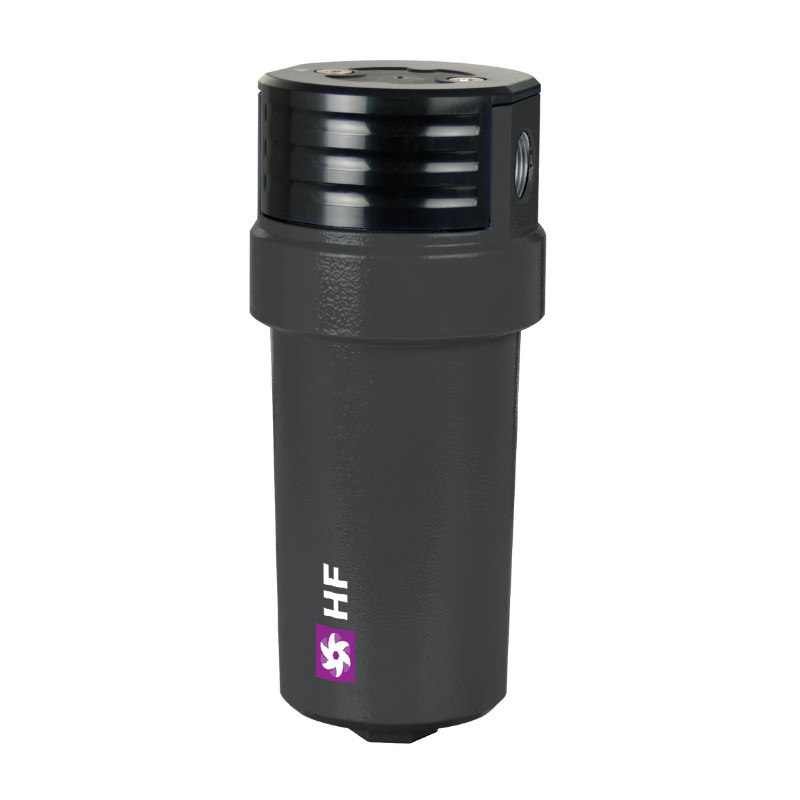

HF Series



HF Series

Product Code: 004

•  High-pressure capacity up to 50 bar for industrial applications.
•  Cast aluminium construction for strength and corrosion resistance.
•  Efficient filtration of particles, oil aerosols, water, and vapors.
•  Compatible with 6 filter element grades (B, P, R, M, S, A).
•  Flow rate range: 71 to 2760 Nm3/h.
•  Connection sizes from 1/2" to 3" for versatile installations.                                                                                      •  Operating temperature range: 1.5°C to 65°C.                                                                                                          •  Standard RAL 5012 color finish.                                                                                                                              •  Optional external condensate drains for moisture management.

  • Product Information
  • Technical Specification

The HF Series High Pressure Filters by Nitrogenium are precision-engineered for high-efficiency removal of contaminants from compressed air systems. Designed to eliminate solid particles, water, oil aerosols, hydrocarbons, and vapors, these filters ensure the delivery of clean compressed air essential for industrial applications.

Constructed from durable cast aluminium and capable of operating at pressures up to 50 bar, HF filters are built to withstand demanding industrial environments. They are compatible with multiple filtration elements (B, P, R, M, S, A) to meet specific air quality requirements in line with ISO standards.

With flow rates ranging from 71 to 2760 Nm3/h and connection sizes from 1/2" to 3", HF filters offer flexible installation options for diverse system configurations. External condensate drains can be integrated to ensure efficient removal of accumulated moisture.

Applications:

•  General industrial processes
•  Automotive production
•  Electronics manufacturing
•  Food and beverage processing
•  Chemical and petrochemical industries
•  PET production
•  Paint and coating systems


Why Choose Nitrogenium’s HF High Pressure Filters?

• Trusted supplier of reliable high-pressure compressed air filtration solutions.
• Robust construction ensuring long-term durability and performance.
• Wide range of flow capacities and connection sizes to fit industrial requirements.
• Designed to ensure compressed air purity and system protection.


Standard Conditions -

HF – High-Flow High-Pressure Filters (up to 50 bar)

These high-capacity filters provide superior filtration in high-pressure applications while maintaining high airflow rates. Their cast aluminum design ensures durability, and they are available in multiple filtration grades to suit various system requirements.



HF Filter Table

TYPE PIPE SIZE [inch] FILTER ELEMENT FLOW CAPACITY DIMENSIONS [mm] VOLUME [l] MASS [kg]
      [Nm³/h] [scfm] A B C D
HF 007 1/2 HF 6060 71 42 250 110 30 80 0,8 2,4
HF 010 3/4 HF 7060 112 66 250 110 30 90 0,8 2,4
HF 018 1 HF 12060 204 120 250 110 30 140 0,8 2,4
HF 047 1 1/2 HF 22090 282 166 535 160 45 260 4,0 6,1
HF 070 1 1/2 HF 32090 400 235 535 160 45 360 4,0 6,1
HF 094 2 HF 50090 494 291 715 160 45 540 5,5 13,0
HF 150 2 HF 51090 799 470 715 160 45 550 5,5 13,0
HF 200 3 HF 51140 2160 1270 772 198 70 620 16,7 30,3
HF 240 3 HF 75140 2760 1620 1010 198 70 780 20,0 34,7
