HP DRY



HP DRY

Product Code: 19

•  Ultra-low pressure dew points: -40°C
•  Handles extreme pressures up to 420 bar
•  Heatless regeneration system for energy-efficient operation
•  Durable twin-tower design with premium desiccant beads
•  Springs in columns prevent desiccant shifting for longer service life
•  Advanced LED controller for real-time monitoring

  • Product Information
  • Technical Specification

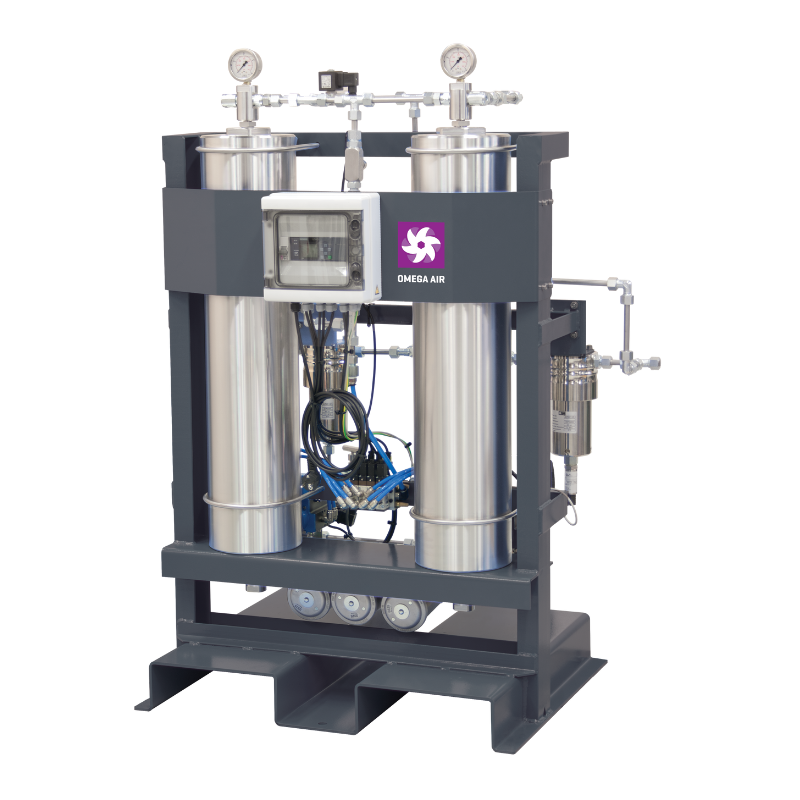

The HP-DRY High-Pressure Adsorption Dryer is designed for continuous separation of water vapor in high-pressure compressed air systems. Built for pressures up to 420 bar, this dryer ensures a -40°C pressure dew point, preventing moisture-related equipment failure and ensuring air quality for critical applications.

Featuring dual desiccant columns, the HP-DRY series operates through adsorption and regeneration cycles, providing consistent and uninterrupted performance. The durable construction, LED controller, and ergonomic design ensure fast installation, reliable operation, and easy maintenance.

Key Features of HP-DRY High-Pressure Adsorption Dryers


•  Ultra-low pressure dew points: -40°C
•  Handles extreme pressures up to 420 bar
•  Heatless regeneration system for energy-efficient operation
•  Durable twin-tower design with premium desiccant beads
•  Springs in columns prevent desiccant shifting for longer service life
•  Advanced LED controller for real-time monitoring


Technical Specifications


•  Operating Pressure: 50, 100, 250, 420 bar
•  Operating Temperature Range: 1.5°C to 50°C
•  Flow Rate: 50 to 1600 Nm3/h
•  Standard Color: RAL 5012


Applications of HP-DRY Adsorption Dryers


The HP-DRY adsorption dryer is specifically designed for high-pressure compressed air systems, ensuring reliable operation in:

• Oil & Gas Industry
• Aerospace & Defense Applications
• High-Pressure Pneumatic Systems
• Industrial Manufacturing & Processing
• Compressed Air Injection & Boosting Systems


How Does the HP-DRY Adsorption Dryer Work?


The HP-DRY adsorption dryer uses dual desiccant columns, alternating between adsorption and regeneration cycles:

• Adsorption Phase: One column removes moisture while the second regenerates.
• Regeneration Phase: A portion of dry compressed air is expanded and used to remove moisture from the desiccant.
• Automatic Column Switch-Over: Seamlessly transitions between columns without pressure loss, ensuring a continuous supply of ultra-dry air.


Why Choose the HP-DRY Adsorption Dryer from Nitrogenium?


• Designed for high-pressure industrial applications
• Ultra-low dew points for moisture-sensitive processes
• Energy-efficient heatless regeneration technology
• Durable construction for long-term reliability
• Advanced monitoring with LED controller

HP-DRY Filter Specifications


Model Connection IN & OUT Inlet Flow [Nm³/h] Outlet Flow [Nm³/h] h [mm] w [mm] d [mm] Mass [kg] Volume [l] Filter
HP-DRY 050 PN50 G 3/8” 50 48,5 1200 680 580 130 3,2 HF 007
HP-DRY 100 PN50 G 3/8” 100 97 1250 680 580 150 6,7 HF 007
HP-DRY 150 PN50 G 3/8” 150 145,5 1550 680 580 170 10,4 HF 007
HP-DRY 250 PN50 G 3/8” 250 242,5 1700 820 700 260 17,4 HF 007
HP-DRY 350 PN50 G 1/2” 350 339,5 1700 820 700 320 25,3 HF 007
HP-DRY 500 PN50 G 1/2” 500 485 1920 820 700 410 32,4 HF 010
HP-DRY 650 PN50 G 1/2” 650 630,5 2250 820 700 460 44,2 HF 010
HP-DRY 50 PN100 G 3/8” 50 48,5 1250 680 580 125 1,6 CHP 005
HP-DRY 100 PN100 G 3/8” 100 97 1350 680 580 170 3,6 CHP 005
HP-DRY 150 PN100 G 3/8” 150 145,5 1650 680 580 200 5,1 CHP 005
HP-DRY 250 PN100 G 3/8” 250 242,5 1550 680 600 210 8,3 CHP 005
HP-DRY 350 PN100 G 1/2” 350 339,5 1460 820 680 270 11,8 CHP 007
HP-DRY 500 PN100 G 1/2” 500 485 1700 820 680 290 16,8 CHP 007
HP-DRY 650 PN100 G 1/2” 650 630,5 1800 820 700 380 22 CHP 007
HP-DRY 800 PN100 G 1/2” 800 776 1850 820 680 480 28 CHP 007
HP-DRY 50 PN250 G 3/8” 50 48,5 1000 680 450 95 0,8 CHP 005
HP-DRY 100 PN250 G 3/8” 100 97 1360 680 450 135 1,6 CHP 005
HP-DRY 150 PN250 G 3/8” 150 145,5 1600 680 450 145 2,2 CHP 005
HP-DRY 250 PN250 G 3/8” 250 242,5 1500 680 450 180 3,6 CHP 005
HP-DRY 350 PN250 G 1/2” 350 339,5 1400 820 650 250 5,2 CHP 007
HP-DRY 500 PN250 G 1/2” 500 485 1500 820 650 300 7 CHP 007
HP-DRY 650 PN250 G 1/2” 650 630,5 1500 820 650 400 9,3 CHP 007
HP-DRY 800 PN250 G 1/2” 800 776 1550 820 650 460 11,7 CHP 007
HP-DRY 1000 PN250 G 1/2” 1000 970 1600 820 650 580 14,5 CHP 007
HP-DRY 1200 PN250 G 1/2” 1200 1164 1550 820 700 620 17,6 CHP 007
HP-DRY 1400 PN250 G 1/2” 1400 1358 1650 820 700 650 21,5 CHP 007
HP-DRY 100 PN420 G 3/8” 100 97 1120 680 450 120 1 CHP 005
HP-DRY 150 PN420 G 3/8” 150 145,5 1360 680 450 135 1,6 CHP 005
HP-DRY 250 PN420 G 3/8” 250 242,5 1450 680 580 190 2,5 CHP 005
HP-DRY 350 PN420 G 1/2” 350 339,5 1350 820 580 270 3,3 CHP 007
HP-DRY 500 PN420 G 1/2” 500 485 1380 820 650 310 4,5 CHP 007
HP-DRY 650 PN420 G 1/2” 650 630,5 1450 820 650 440 6,1 CHP 007
HP-DRY 800 PN420 G 1/2” 800 776 1230 820 650 425 7,4 CHP 007
HP-DRY 1000 PN420 G 1/2” 1000 970 1450 820 650 600 10 CHP 007
HP-DRY 1200 PN420 G 1/2” 1200 1164 1450 1000 900 850 11,4 CHP 007
HP-DRY 1400 PN420 G 1/2” 1400 1358 1500 1000 900 800 14,3 CHP 007
HP-DRY 1600 PN420 G 1/2” 1600 1552 1450 1000 900 1200 15,3 CHP 007
