MVAC Series



MVAC Series

Product Code: 005

•  High-efficiency bacterial and particulate filtration for medical vacuum systems.
•  Certified performance exceeding HTM 2022 standards (tested to BS 3928).
•  Protects vacuum pumps from contamination, corrosion, and damage.
•  Reduces risk of biological infection in hospitals and laboratories.
•  Transparent collection flask for visible monitoring of liquids.
•  Removable and sterilizable liquid collection container.
•  Designed for easy installation and maintenance.

  • Product Information
  • Technical Specification

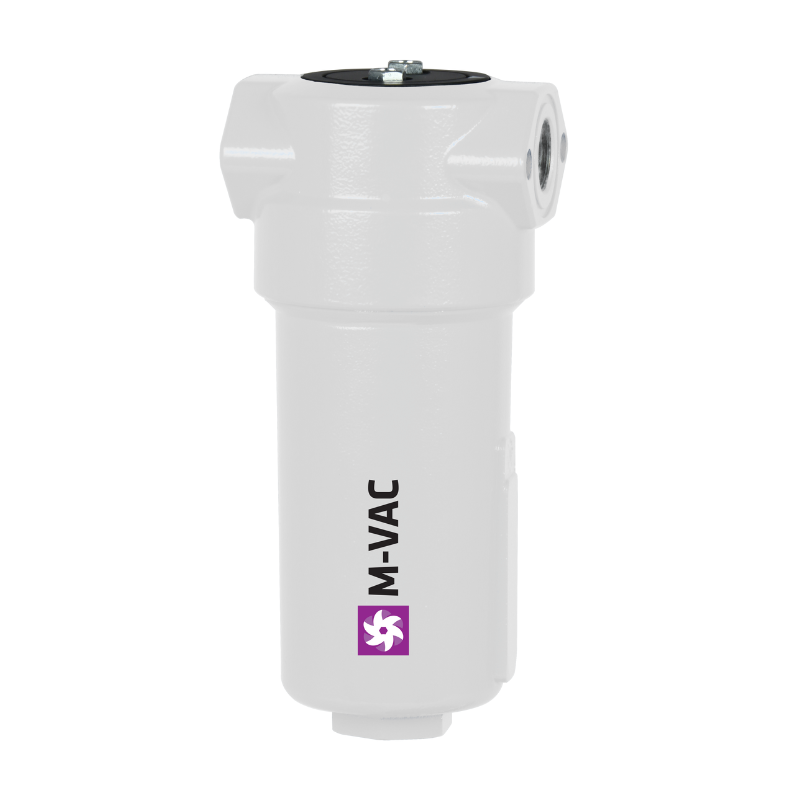

The M-VAC Series Medical Vacuum Filters by Nitrogenium are specifically engineered for critical medical and laboratory vacuum systems. These high-performance medical vacuum filters effectively remove bacteria, liquid contaminants, and solid particles from the suction side of vacuum pumps. This prevents pump damage and eliminates the risk of biological contamination in healthcare environments.

With an advanced filtration efficiency that surpasses the 0.005% penetration requirement specified in HTM 2022 standards for infectious disease units (tested in accordance with BS 3928), our M-VAC filters offer industry-leading protection for hospitals, clinics, and laboratories.

Applications:

•  Hospitals and healthcare facilities
•  Surgical units and operating rooms
•  Laboratories and research centers
•  Pharmaceutical manufacturing


Why Choose Nitrogenium’s M-VAC Medical Vacuum Filters?

• Superior bacterial filtration performance exceeding healthcare industry standards.
• Reliable protection for critical vacuum systems in medical environments.
• Easy-to-maintain design ensuring hygiene and long service life.


Standard Conditions -

M-VAC – Medical Vacuum Filters

Designed for medical vacuum systems, these filters ensure the highest air purity by efficiently removing bacteria and solid contaminants from the airflow. They meet HTM 2022 and ISO 7396-1 standards, making them ideal for use in hospitals and laboratories.


M-VAC Filter Housing Table

FILTER HOUSING PIPE SIZE [inch] FILTER ELEMENT FLOW CAPACITY DIMENSIONS [mm] VOLUME [l] WEIGHT [kg]
      [Nm³/h] [scfm] A B C D
M-VAC 0006 1/8 03528 M-VAC 1,2 0,7 105 55 14 40 0,08 0,3
M-VAC 0016 1/4 05528 M-VAC 2,2 1,3 125 55 14 60 0,10 0,3
M-VAC 0026 1/4 03844 M-VAC 3,1 1,8 145 73 18 40 0,23 0,5
M-VAC 0036 3/8 03844 M-VAC 3,7 2,2 145 73 18 40 0,23 0,5
M-VAC 0046 1/4 06050 M-VAC 4,4 2,6 189 88 21 60 0,45 0,8
M-VAC 0056 3/8 06050 M-VAC 7,5 4,4 189 88 32 60 0,45 0,8
M-VAC 0076 1/2 07050 M-VAC 10 5,7 189 88 32 80 0,46 0,8
M-VAC 0106 3/4 14050 M-VAC 15 9 257 88 32 150 0,65 0,8
M-VAC 0186 1 12075 M-VAC 24 14 261 125 37 160 1,4 2,0
M-VAC 0306 1 22075 M-VAC 42 25 361 125 37 250 2,0 2,4
M-VAC 0476 1 1/2 32075 M-VAC 64 38 461 125 37 350 2,6 2,6
M-VAC 0706 1 1/2 50075 M-VAC 97 57 641 125 37 530 3,6 3,5
M-VAC 0946 2 51090 M-VAC 125 74 698 164 49 530 6,0 6,1
M-VAC 1506 2 76090 M-VAC 187 110 944 164 49 520 8,3 8,0
M-VAC 1756 2 1/2 76090 M-VAC 210 124 944 164 49 770 8,4 7,6
M-VAC 2006 3 51140 M-VAC 270 159 802 242 60 770 16,7 14,1
M-VAC 2406 3 75140 M-VAC 345 203 999 242 60 630 21,3 16,7
