Product Code: 13
• Operating Pressure: 0 – 20 bar (0 - 290 psi)
• Indication Range: 0 – 0.9 bar (0 - 13 psi)
• Accuracy: ±5% of full scale value
• Installation: Mounted on filter housing head
• Material: Polyamide PA6 (30% glass fiber), NBR, Stainless Steel?156†source?

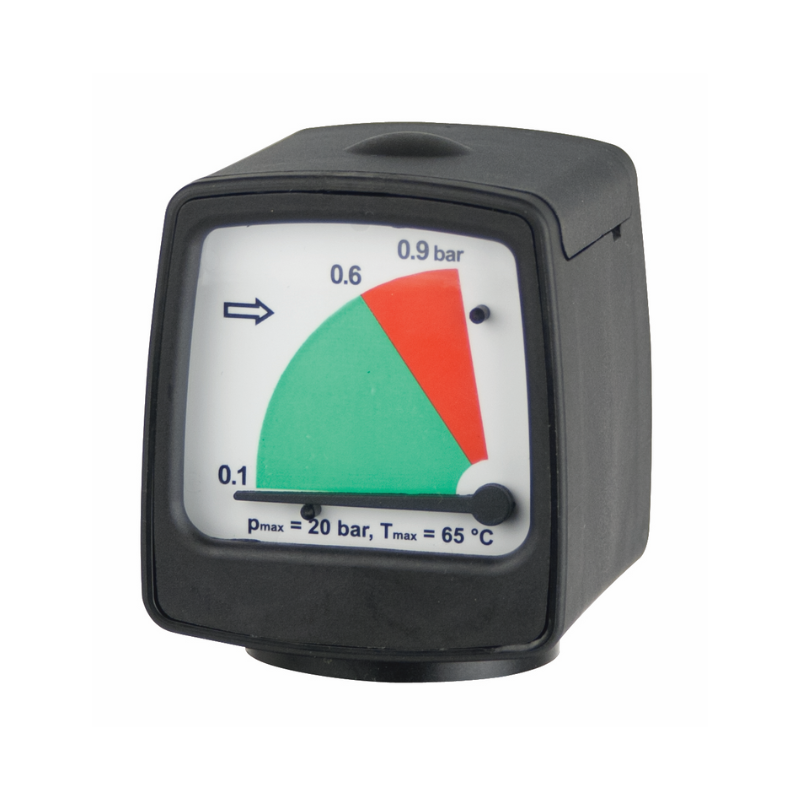

Magnetic Differential Manometer Description: The MDM40 uses a magnetic differential mechanism to indicate pressure drop across the filter element. It provides highly accurate readings and is commonly used in industrial compressed air applications.
• Operating Pressure: 0 – 20 bar (0 - 290 psi)
• Indication Range: 0 – 0.9 bar (0 - 13 psi)
• Accuracy: ±5% of full scale value
• Installation: Mounted on filter housing head
• Material: Polyamide PA6 (30% glass fiber), NBR, Stainless Steel?156†source?
| Dimensions | [mm] | [inch] |
|---|---|---|
| A | 54 | 2.12 |
| B | 54 | 2.12 |
| C | 64 | 2.52 |
| D | 72 | 2.83 |
| E | 24 | 0.94 |
| F | 40 | 1.57 |
| G | M5 |
