Product Code: 12
• Operating Pressure: 0 – 16 bar (0 - 232 psi)
• Indication Range: Green (0 – 0.6 bar), Red (0.6 – 0.9 bar)
• Lightweight Design: 0.03 kg (0.07 lbs)
• Installation: Mounted on filter housing head
• Material: Polyamide PA6 (30% glass fiber), Stainless Steel?157†source?

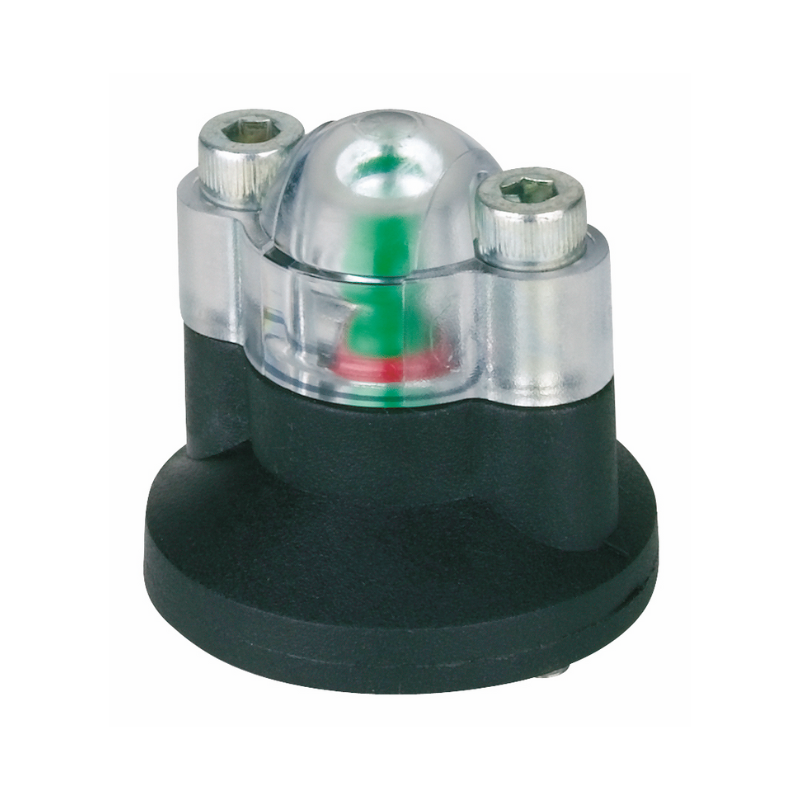

The PDI16 is a compact, lightweight differential pressure gauge designed for monitoring pressure drops in compressedvair filter housings. It features a color-coded display (green & red zones), making it easy to determine filter element status.
• Operating Pressure: 0 – 16 bar (0 - 232 psi)
• Indication Range: Green (0 – 0.6 bar), Red (0.6 – 0.9 bar)
• Lightweight Design: 0.03 kg (0.07 lbs)
• Installation: Mounted on filter housing head
• Material: Polyamide PA6 (30% glass fiber), Stainless Steel?157†source?
| Dimensions | [mm] | [inch] |
|---|---|---|
| A | 38 | 1.49 |
| B | 43 | 1.69 |
| C | 40 | 1.57 |
| D | 24 | 0.94 |
| E | M5 | — |
