B DRY



B DRY

Product Code: 17


•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration system for energy-efficient operation
•  Advanced controller with LCD display for real-time monitoring
•  Durable twin-tower design with high-quality desiccant
•  Low-maintenance system with easy serviceability
•  Stable air pressure without pressure drops

  • Product Information
  • Technical Specification

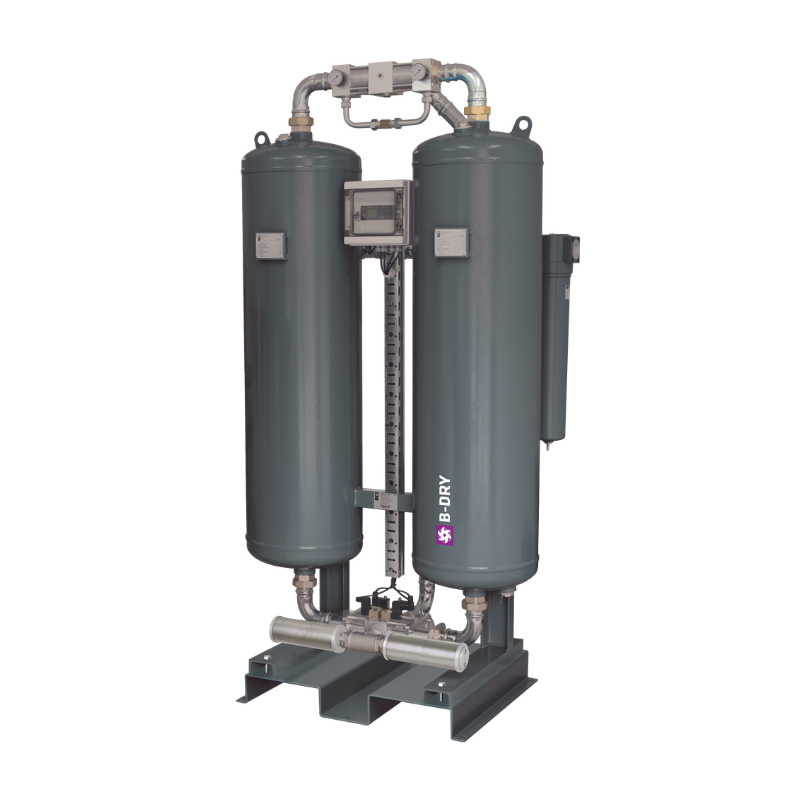

The B-DRY Heatless Adsorption Dryer is engineered for continuous separation of water vaporfrom compressed air, ensuring dry and high-quality air for industrial applications. Designed with dual desiccant columns, this dryer operates in adsorption and regeneration cycles, providing uninterrupted performance with stable dew points as low as -70°C.

With a wide flow rate range from 110 Nm3/h to 1152 Nm3/h, the B-DRY series is suitable for demanding industrial applications, ensuring long-lasting protection against moisture-related system failures.

Key Features of B-DRY Heatless Adsorption Dryers


•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration system for energy-efficient operation
•  Advanced controller with LCD display for real-time monitoring
•  Durable twin-tower design with high-quality desiccant
•  Low-maintenance system with easy serviceability
•  Stable air pressure without pressure drops


Technical Specifications


•  Operating Pressure: 4 to 16 bar
•  Operating Temperature Range: 1.5°C to 60°C
•  Flow Rate: 110 to 1152 Nm3/h
•  Standard Color: RAL 5012
•  Average Compressed Air Consumption: 15-20%


Applications of B-DRY Adsorption Dryers


The B-DRY adsorption dryer is ideal for applications requiring extremely dry compressed air, especially in environments with freezing risks or high air purity demands:


•  General Compressed Air Systems
•  Outdoor Installations (Freeze Protection)
•  Food & Beverage Industry (moisture-sensitive processes)
•  Pharmaceutical & Medical Applications (clean air compliance)
•  Electronics & Semiconductor Manufacturing
•  Chemical & Petrochemical Processing


How Does the B-DRY Adsorption Dryer Work?


The B-DRY adsorption dryer utilizes dual desiccant columns, alternating between adsorption and regeneration cycles:

•  Adsorption Phase: One column removes moisture from the compressed air while the other regenerates.
• Regeneration Phase: A portion of dry compressed air is used to remove moisture from the desiccant, ensuring consistent drying performance.
• Automatic Column Switch-Over: The system seamlessly switches columns without pressure drops, maintaining a continuous air supply.


Why Choose the B-DRY Adsorption Dryer from Nitrogenium?


• Reliable & efficient moisture removal with ultra-low dew points
• Heatless regeneration for cost-effective drying
• Robust twin-tower design for long-lasting performance.
• Optimized air consumption to minimize energy use
• Smart controller with LCD display for easy monitoring


Model Conn. IN & OUT (6) Inlet flow [Nm³/h] (4) Outlet flow [Nm³/h] (5) A [mm] B [mm] C [mm] Mass [kg] Volume [l] (7) Filter
B-DRY 110 G 1” 110 86,0 719±5 422 1647 140 20 AF 0186
B-DRY 150 G 1” 150 117,5 707±5 422 1897 156 25 AF 0186
B-DRY 200 G 1” 200 157,0 707±5 471 1664 196 36 AF 0306
B-DRY 250 G 1” 260 204,0 707±5 471 1914 236 45 AF 0306
B-DRY 300 G 1 1⁄2” 320 251,0 860±5 535 1742 274 57 AF 0476
B-DRY 400 G 1 1⁄2” 410 321,5 854±5 535 1989 295 70 AF 0476
B-DRY 600 G 1 1⁄2” 590 462,5 854±5 671 2051 392 102 AF 0706
B-DRY 800 G 2” 770 603,5 1051±10 701 2080 507 134 AF 0946
B-DRY 1000 G 2” 1000 784,0 1051±10 701 2140 597 164 AF 0946
B-DRY 1200 G 2” 1152 903,2 1207±10 701 2185 TBA 215 AF 1506
