PVAC Series



PVAC Series

Product Code: 006

•  Two-stage filtration for maximum vacuum pump protection.
•  Rough prefilter (VACP) for bulk liquid and large particle removal.
•  High-efficiency microfilter (VACM) for fine particle filtration.
•  Operating pressure range: 20 to 2000 mbar (absolute).
•  Flow rate range: 7.5 to 345 Nm3/h.
•  Connection sizes: 3/8" to 3".                                                                                                                              •  Operating temperature range: 1.5°C to 65°C.                                                                                                •  Standard RAL 5012 color finish.

  • Product Information
  • Technical Specification

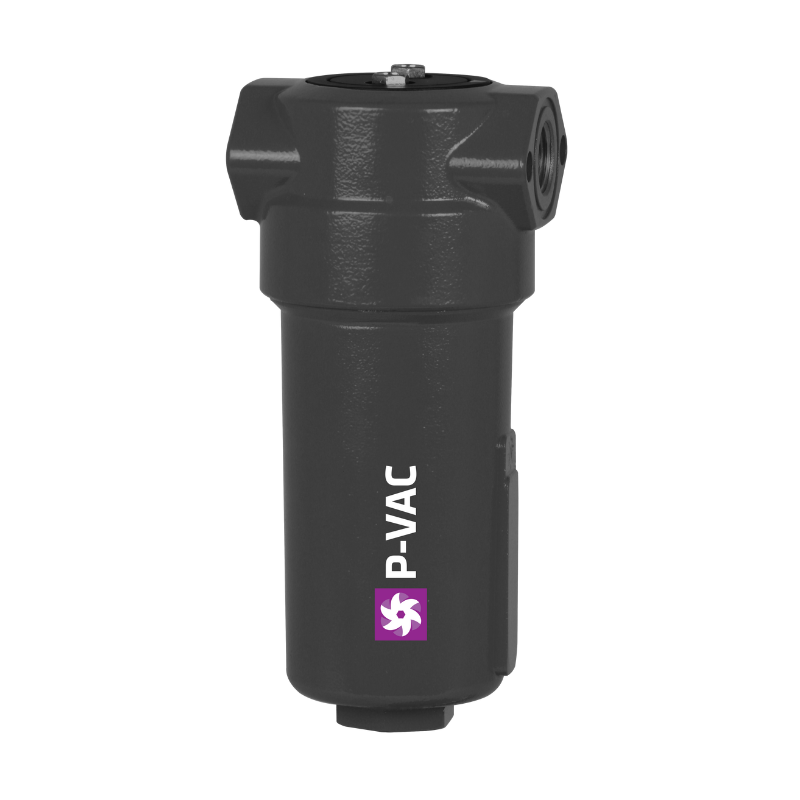

The P-VAC Series Vacuum Pump Protection Filters by Nitrogenium are specifically designed to safeguard vacuum pumps from damage caused by solid particles, liquid contaminants, and fine impurities. These filters optimize the suction side filtration process, ensuring extended pump life and improved system reliability.

P-VAC filters offer a two-stage filtration approach. The rough prefilter (VACP) captures bulk liquids and large solid particles, while the high-efficiency microfilter (VACM) effectively removes ultra-fine contaminants that may cause damage to sensitive vacuum pumps.

With operating pressure ranges from 20 to 2000 mbar (absolute) and flow capacities between 7.5 and 345 Nm3/h, P-VAC filters are suitable for a variety of vacuum systems. The filters are designed with connection sizes from 3/8" to 3", and they operate efficiently in temperatures ranging from 1.5°C to 65°C. The standard color finish is RAL 5012.

Applications:

•  Vacuum pump systems
•  General industrial processes
•  Pharmaceutical manufacturing
•  Food processing
•  Chemical and petrochemical industries
•  Electronics production


Why Choose Nitrogenium’s P-VAC Vacuum Pump Protection Filters?

• Advanced dual-stage filtration for optimal vacuum pump safety.
• Designed to extend pump life and reduce maintenance costs.
• Suitable for a wide range of industrial vacuum applications.
• Trusted supplier of vacuum filtration solutions for industrial systems.


Standard Conditions -

P-VAC – Vacuum Pump Protection Filters

Designed to protect vacuum pumps from contaminants, these filters provide dual-stage filtration for effective particle and oil mist removal. They ensure optimal pump performance and extended service life in industrial vacuum applications.



P-VAC Filter Housing Table

FILTER HOUSING PIPE SIZE [inch] FILTER ELEMENT FLOW CAPACITY DIMENSIONS [mm] VOLUME [l] WEIGHT [kg]
      [Nm³/h] [scfm] A B C D
P-VAC 0006 1/8 03528 VACP, VACM 1,2 0,7 105 55 14 40 0,08 0,3
P-VAC 0016 1/4 05528 VACP, VACM 2,2 1,3 125 55 14 60 0,10 0,3
P-VAC 0026 1/4 03844 VACP, VACM 3,1 1,8 145 73 18 40 0,23 0,5
P-VAC 0036 3/8 03844 VACP, VACM 3,7 2,2 145 73 18 40 0,23 0,5
P-VAC 0046 1/4 06050 VACP, VACM 4,4 2,6 189 88 21 60 0,45 0,8
P-VAC 0056 3/8 06050 VACP, VACM 7,5 4,4 189 88 32 60 0,45 0,7
P-VAC 0076 1/2 07050 VACP, VACM 10 5,7 189 88 32 60 0,45 0,7
P-VAC 0106 3/4 14050 VACP, VACM 15 9 257 88 32 150 0,64 0,8
P-VAC 0186 1 12075 VACP, VACM 24 14 261 125 37 160 1,4 1,9
P-VAC 0306 1 22075 VACP, VACM 42 25 361 125 37 250 2,0 2,4
P-VAC 0476 1 1⁄2 32075 VACP, VACM 64 38 461 125 37 350 2,6 2,6
P-VAC 0706 1 1⁄2 50075 VACP, VACM 97 57 641 125 37 530 3,6 3,5
P-VAC 0946 2 51090 VACP, VACM 125 74 698 164 49 530 6,0 6,1
P-VAC 1506 2 76090 VACP, VACM 187 110 944 164 49 520 8,3 8,0
P-VAC 1756 2 1⁄2 76090 VACP, VACM 210 124 944 164 49 770 8,4 7,6
P-VAC 2006 3 51140 VACP, VACM 270 159 802 242 60 770 16,7 14,1
P-VAC 2406 3 75140 VACP, VACM 345 203 999 242 60 630 21,3 16,7
