MDA60

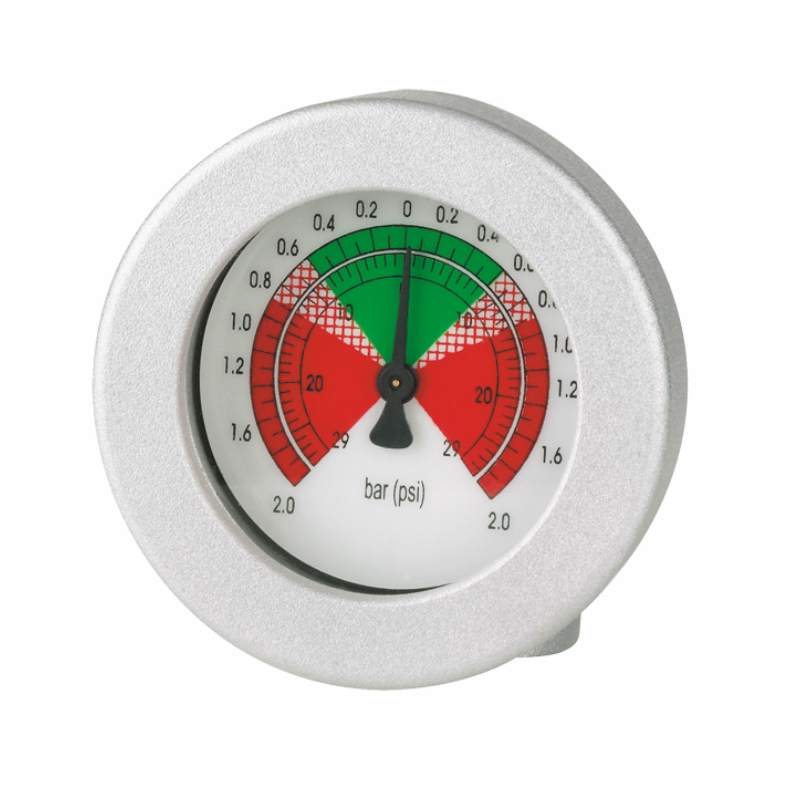

MDA60 – High-Accuracy Pressure Drop Indicator Description: The MDA60 is a high-precision pressure drop indicator optimized for large industrial compressed air systems. With an extended measuring range of up to 2 bar, it ensures early detection of pressure losses.

Key Features:

•  Operating Pressure: 0 – 20 bar (0 - 290 psi)
•  Measuring Range: 0 – 2 bar (0 - 29 psi)
•  Accuracy Class: 2.5 (±2.5% of the span)
•  Temperature Effect: 0.4% / 10K of the span
•  Installation: Mounted on filter housing head?158†source?

Frequently Asked Questions (FAQs)

Q1: How does a differential pressure gauge work in compressed air filtration?

Ans. It measures the pressure difference across the filter, indicating when a filter is clogged and needs replacement. This helps maintain efficiency and prevents system failures.

Q2: What is the best differential pressure gauge for industrial air systems?

Ans. The MDA60 offers high-precision readings with a wide measuring range, making it ideal for industrial applications requiring accurate pressure monitoring.

Q3: How often should I check my differential pressure gauge?

Ans. It is recommended to monitor the gauge regularly, at least once a week, to ensure the filter is functioning optimally and to replace the element when the pressure drop reaches the recommended threshold.

Q4: Can differential pressure gauges help save energy?

Ans. Yes! By ensuring timely filter replacements, a differential pressure gauge helps reduce unnecessary pressure drops, leading to lower energy consumption and improved compressor efficiency.

Why Choose Nitrogenium’s Differential Pressure Gauges?

•  Reliable Monitoring: Prevents unexpected filter failures and improves system efficiency.

•  High-Quality Materials: Durable construction ensures long service life.

•  Wide Range of Applications: Suitable for automotive, food & beverage, chemical, petrochemical, electronics, and general industrial sectors.

•  Optimized for Compressed Air Filtration: Ensures compliance with ISO 8573-1 air quality standards.

•  Seamless System Integration: Compatible with various compressed air filter housings for easy installation.
