Product Code: 008
• Compatible with Ultrafilter OEM housings.
• High dirt-holding capacity for extended performance.
• Designed for high airflows with minimal pressure drop.
• Ensures ISO 8573-1 compliance.
• Available flow capacities: 36 to 3600 Nm3/h (21 to 2119 CFM).
• Available filtration grades: PE/P, XFF, XMF, XSMF, AK/A.

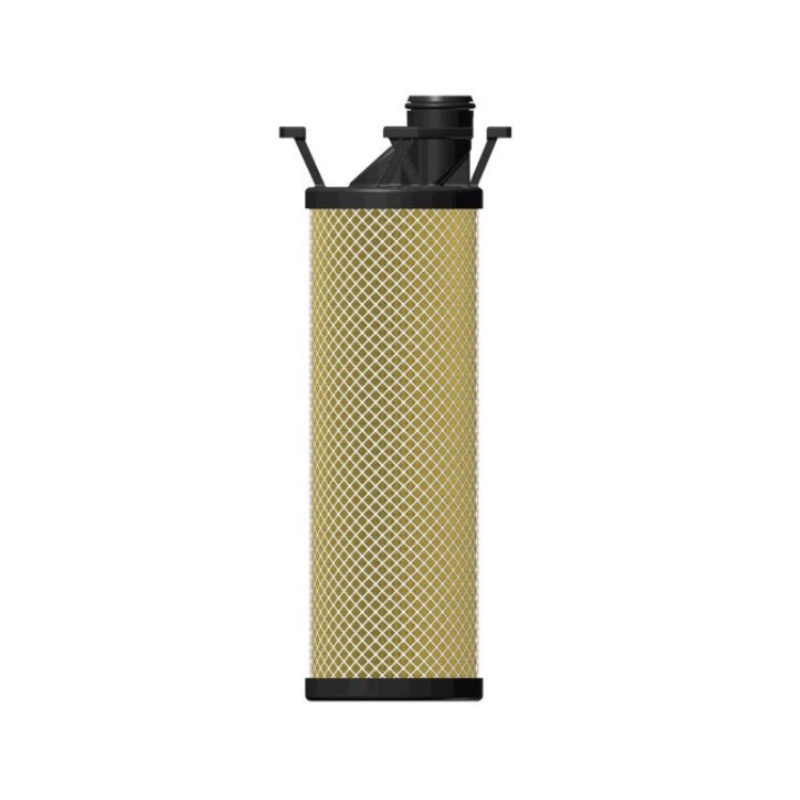

Our Ultrafilter-compatible filter elements provide exceptional oil mist, water, and particulate removal, maintaining optimal compressed air quality for various industrial applications.
• Compatible with Ultrafilter OEM housings.
• High dirt-holding capacity for extended performance.
• Designed for high airflows with minimal pressure drop.
• Ensures ISO 8573-1 compliance.
• Available flow capacities: 36 to 3600 Nm3/h (21 to 2119 CFM).
• Available filtration grades: PE/P, XFF, XMF, XSMF, AK/A.
| Model* | Diameter [mm] | Height [mm] | Flow Capacity | Fits into filter housing | |
|---|---|---|---|---|---|
| [Nm³/h] | [scfm] | ||||
| ODO 0205 | 35 | 62 | 20-40 | 12-24 | 0002 |
| ODO 0305 | 35 | 76 | 40-60 | 24-35 | 0004 |
| ODO 0310 | 42 | 76 | 60-90 | 35-53 | 0006 |
| ODO 0410 | 42 | 104 | 90-120 | 53-71 | 0009 |
| ODO 0420 | 52 | 104 | 120-180 | 71-106 | 0012 |
| ODO 0520 | 52 | 128 | 180-270 | 106-159 | 0018 |
| ODO 0525 | 62 | 128 | 270-360 | 159-212 | 0027 |
| ODO 0725 | 62 | 180 | 360-480 | 212-282 | 0036 |
| ODO 0730 | 86 | 180 | 480-720 | 282-423 | 0048 |
| ODO 1030 | 86 | 254 | 720-1080 | 423-635 | 0072 |
| ODO 1530 | 86 | 381 | 1080-1440 | 635-847 | 0108 |
| ODO 2030 | 86 | 508 | 1440-1920 | 847-1129 | 0144 |
| ODO 3030 | 86 | 760 | 1920-2880 | 1129-1693 | 0192 |
| ODO 3050 | 140 | 760 | 2880-4320 | 1693-2540 | 0288 |
