Product Code: 007
• Exact fit for Atlas Copco filter housings
• High-efficiency filtration for oil, water, and particles
• Extended service life with optimal dirt-holding capacity
• Ensures compliance with ISO 8573-1 air quality standards
• Available flow capacities: 36 to 1980 Nm3/h (21 to 1165 CFM)
• Available filtration grades: DD/XM, PD/XS, UD/XS, QD/A

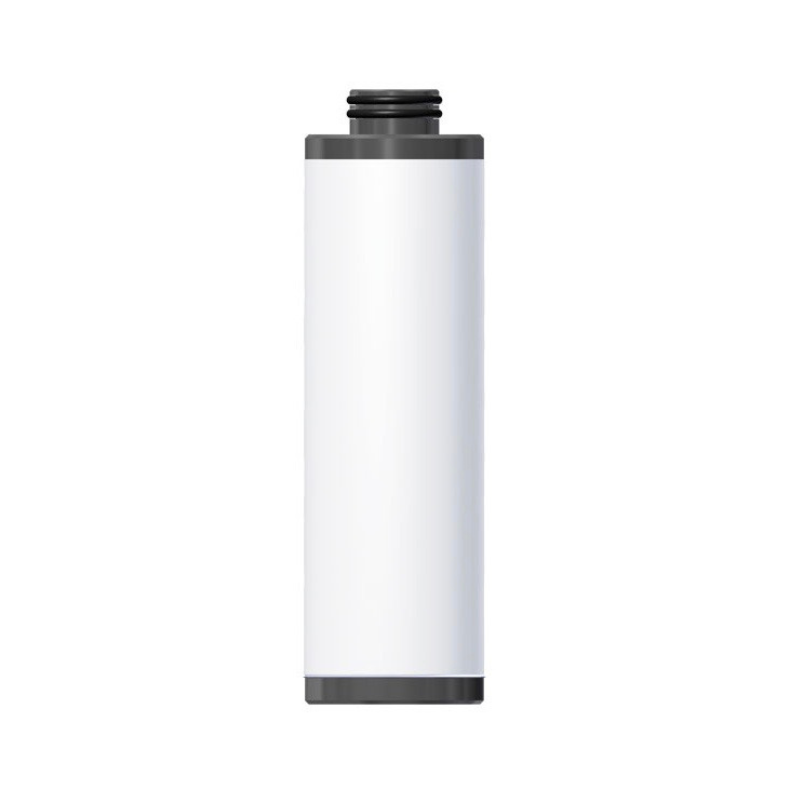

Omega Air’s Atlas Copco replacement filter elements are designed to fit Atlas Copco OEM filter housings seamlessly. These filters ensure efficient separation of oil mist, water, and solid particles, maintaining compressed air purity and protecting downstream equipment.
• Exact fit for Atlas Copco filter housings
• High-efficiency filtration for oil, water, and particles
• Extended service life with optimal dirt-holding capacity
• Ensures compliance with ISO 8573-1 air quality standards
• Available flow capacities: 36 to 1980 Nm3/h (21 to 1165 CFM)
• Available filtration grades: DD/XM, PD/XS, UD/XS, QD/A
|
Model* (DD/M, PD/S, QD/A) |
Model* (UD/S) |
Diameter [mm] |
Height [mm] |
Flow Capacity |
Fits into filter housing for |
|
|---|---|---|---|---|---|---|
| [Nm³/h] | [scfm] | |||||
| OAC +10 | OAC +9 | 46 | 55,5 | 36 (32,4) | 21 (19) | 10+ (UD 9+) |
| OAC +20 | OAC +15 | 46 | 90,5 | 72 (54) | 42 (32) | 20+ (UD 15+) |
| OAC +35 | OAC +25 | 46 | 146 | 126 (90) | 74 (53) | 35+ (UD 25+) |
| OAC +50 | OAC +45 | 61 | 155 | 180 (162) | 106 (95) | 50+ (UD 45+) |
| OAC +70 | OAC +60 | 61 | 195 | 252 (216) | 148 (127) | 70+ (UD 60+) |
| OAC +100 | 86 | 222 | (360) | (212) | (UD 100+) | |
| OAC +130 | OAC +140 | 86 | 288 | 468 (504) | 275 (297) | 130+ (UD 140+) |
| OAC +170 | OAC +180 | 86 | 323 | 612 (648) | 360 (381) | 170+ (UD 180+) |
| OAC +210 | OAC +220 | 86 | 367,5 | 756 (792) | 445 (466) | 210+ (UD 220+) |
| OAC +310 | OAC +310 | 101,5 | 420 | 1116 (1116) | 657 (657) | 310+ (UD 310+) |
| OAC +425 | OAC +425 | 120 | 509 | 1530 (1530) | 901 (901) | 425+ (UD 425+) |
| OAC +550 | OAC +550 | 120 | 679 | 1980 (1980) | 1165 (1165) | 550+ (UD 550+) |
| OAC +550F*** | OAC +550F*** | 120 | 683 | 1980 (1980) | 1102 (1165) | 550F+ (UD 550+F) |
