Product Code: 27

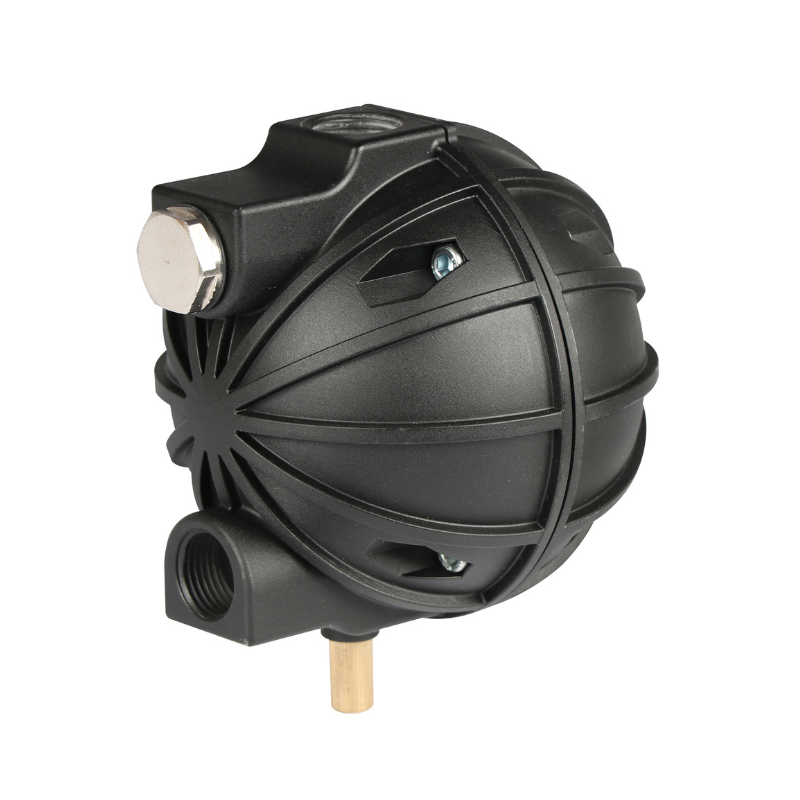

The AOK 13PA Automatic Mechanical Condensate Drain is a highly efficient solution designed for the fully automatic discharge of condensate and other non-aggressive fluids from compressed air systems. Engineered for zero air loss operation, it helps maintain system efficiency while preventing moisture-related damage to equipment.
The direct-acting valve, controlled by a precise level-based floater, ensures automatic and reliable drainage without requiring external power. As condensate accumulates in the reservoir, it is discharged only when necessary, reducing unnecessary air loss and optimizing energy consumption.
This rugged and compact unit, made from high-quality PA6 housing, is ideal for a wide range of compressed air applications.
• Zero air loss operation for energy-efficient drainage
• Direct-acting valve with level-controlled floater for precise discharge
• No external power required, ensuring easy installation & operation
• Durable PA6 housing for long-term industrial performance
• Compact & lightweight design, perfect for various applications
• Operating Pressure: Up to 13 bar
• Drain Capacity: 167 l/h
• Connections: 1⁄2” BSP/NPT
• Operating Temperature Range: 1.5°C to 65°C
• Housing Material: PA6 (Polyamide 6)
Applications of AOK 13PA Mechanical Condensate Drains The AOK 13PA condensate drain is ideal for industrial compressed air systems, preventing moisture buildup in:
• Air Compressors (Piston & Screw)
• After-Coolers
• Cyclone Condensate Separators
• Pressure Vessels/Air Tanks
• Compressed Air Dryers
• Compressed Air Filters
• Prevents moisture accumulation, improving system reliability & efficiency
• Fully automatic operation without external power
• Eliminates air loss, reducing operational costs
• Compact, durable design suited for demanding industrial applications
• Compatible with various compressed air systems
| Type | A | B | C |
|---|---|---|---|
| AOK 13B | 115 | 141 | 122 |
