BF Series



BF Series

Product Code: 002

•  Heavy-duty welded carbon steel construction for high-flow industrial applications.
•  High-efficiency filtration for solid particles, water, oil aerosols, hydrocarbons, odors, and vapors.                          •  ISO 8573-compliant air quality with 6 filtration grades (B, P, R, M, S, A).                                                                  •  Optional external condensate drain systems for effective drainage.                                                                        •  Suitable for industrial systems with operating pressures up to 16 bar.                                                                    •  Custom solutions available for fluid group 1 applications upon request.

  • Product Information
  • Technical Specification

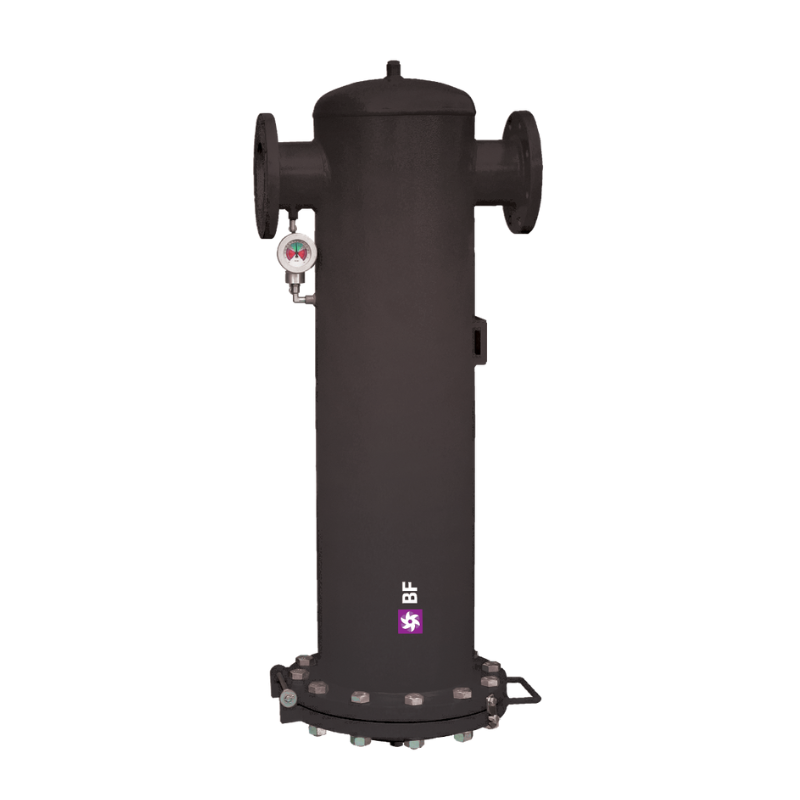

The BF Series Compressed Air Filters by Nitrogenium are built to protect downstream compressed air systems and industrial equipment in heavy-duty environments. Designed with robust welded carbon steel construction, BF filters are ideal for applications requiring high airflow and reliable filtration performance under demanding conditions.

Engineered for efficient removal of solid particles, water, oil aerosols, hydrocarbons, odors, and vapors, BF filters ensure top-quality compressed air up to 16 bar. They comply with ISO 8573 air quality standards and can be fitted with six different grades of filter elements (B, P, R, M, S, and A) to suit specific air purity requirements.

Optional external condensate drains can be integrated to ensure efficient draining from the filter housing, enhancing overall system performance. For specialized applications involving fluid group 1, custom solutions are available upon request.

Applications:

•  Steel plants
•  Power generation facilities
•  Petrochemical industries
•  Large-scale manufacturing
•  Heavy industrial processing


Why Choose Nitrogenium’s BF Compressed Air Filters?

• Superior air filtration performance for demanding industrial environments.
• Robust design ensuring longevity and corrosion resistance.
• Flexibility with multiple filtration grades for ISO 8573 compliance.
• Trusted supplier of industrial compressed air filtration solutions.


Standard Conditions -

BF Compressed Air Filteration

Specifically designed for high-volume air systems, these filters handle large amounts of contaminants before reaching sensitive equipment. Constructed from robust carbon steel, they serve as primary protection in industrial compressed air networks.



Filter Housing Table

TYPE CONN. SIZE [DN] FILTER ELEMENT FLOW CAPACITY DIMENSIONS [mm] VOLUME [l] WEIGHT [kg]
      [Nm³/h] [scfm] A B C D E
BF 0240 80 1 x 76090 1680 989 1145 450 1640 219 157 38 71
BF 0300 100 2 x 76090 3150 1853 1330 560 1780 324 208 100 110
BF 0450 125 3 x 76090 4700 2765 1330 560 1780 324 206 100 115
BF 0600 150 4 x 76090 6300 3706 1360 620 1780 368 241 125 154
BF 0900 150 6 x 76090 9400 5530 1420 680 1810 405 261 168 195
BF 1200 200 8 x 76090 12550 7382 1850 792 525 508 - 283 340
BF 1500 200 10 x 76090 15700 9235 1890 918 545 610 - 411 497
BF 1800 250 12 x 76090 18850 11088 2042 955 568 610 - 461 547
BF 2500 250 16 x 76090 25100 14765 2030 1042 685 711 - 614 643
BF 3000 300 20 x 76090 31400 18481 2130 1085 680 711 - 663 656
