F DRY



F DRY

Product Code: 18

•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration for energy efficiency
•  Advanced controller with LCD display for real-time system monitoring
•  High-capacity twin-tower design with high-quality desiccant
•  Stable air pressure without fluctuations or drops
•  Low-maintenance system for industrial applications

  • Product Information
  • Technical Specification

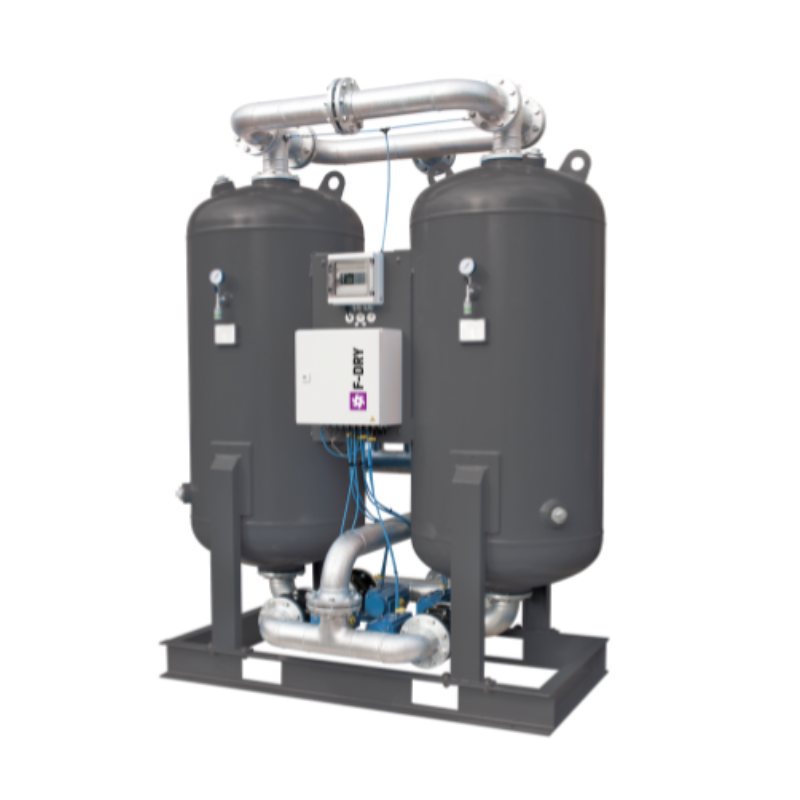

The F-DRY Heatless Adsorption Dryer is a high-capacity compressed air drying solution designed for continuous water vapor removal and pressure dew points as low as -70°C. This large-scale twin-tower desiccant dryer ensures efficient air drying without pressure drops, making it ideal for industrial and process applications.

With a flow rate range of 1200 Nm3/h to 6500 Nm3/h, the F-DRY series is built for heavy-duty compressed air systems, ensuring maximum air quality and equipment protection.

Key Features of F-DRY Heatless Adsorption Dryers


•  Ultra-low pressure dew points: -40°C (-25°C / -70°C)
•  Heatless regeneration for energy efficiency
•  Advanced controller with LCD display for real-time system monitoring
•  High-capacity twin-tower design with high-quality desiccant
•  Stable air pressure without fluctuations or drops
•  Low-maintenance system for industrial applications


Technical Specifications


•  Operating Pressure: 4 to 16 bar
•  Operating Temperature Range: 1.5°C to 60°C
•  Flow Rate: 1200 to 6500 Nm3/h
•  Standard Color: RAL 5012
•  Average Compressed Air Consumption: 15-20%


Applications of F-DRY Adsorption Dryers


The F-DRY adsorption dryer is specifically designed for high-flow compressed air systems, ensuring reliable operation in:

•  Large-Scale Compressed Air Networks
•  Heavy Industrial Manufacturing
•  Food & Beverage Industry (moisture-sensitive environments)
•  Pharmaceutical & Medical Applications (sterile air systems)
•  Electronics & Semiconductor Manufacturing
•  Chemical & Petrochemical Processing


How Does the F-DRY Adsorption Dryer Work?


The F-DRY adsorption dryer utilizes dual desiccant columns, operating on a cycle of adsorption and regeneration:

• Adsorption Phase: One column removes moisture while the second regenerates.
• Regeneration Phase: A portion of dry compressed air is expanded and used to remove moisture from the desiccant.
• Automatic Column Switch-Over: Seamlessly transitions between columns without pressure loss, ensuring a continuous supply of dry air.


Why Choose the F-DRY Adsorption Dryer from Nitrogenium?


• High-flow capacity for large industrial applications
• Ultra-low dew points for moisture-sensitive processes
• Heatless regeneration for cost-effective drying
• Advanced control system with real-time monitoring
• Designed for demanding industrial environments


Model Conn. IN & OUT (6) Inlet flow [Nm³/h] (4) Outlet flow [Nm³/h] (5) A [mm] B [mm] C [mm] Mass [kg] Volume [l] (7) Filter
F-DRY 1200 DN50 1200 936,0 1210 770 2200 820 215 AF 1506
F-DRY 1500 DN65 1500 1170 1550 860 2225 980 270 AF 1756
F-DRY 2000 DN65 2000 1560 1690 860 2400 1550 420 AF 2006
F-DRY 2500 DN80 2500 1950 1700 960 2400 1680 470 AF 2406
F-DRY 3000 DN80 3000 2340 1875 950 2400 1850 580 BF 0300
F-DRY 3750 DN100 3750 2925 2030 1010 2510 2300 715 BF 0450
F-DRY 5000 DN100 5000 3900 2240 1160 2650 2850 950 BF 0600
F-DRY 6500 DN125 6500 5070 2420 1250 2730 3750 1380 BF 0900
