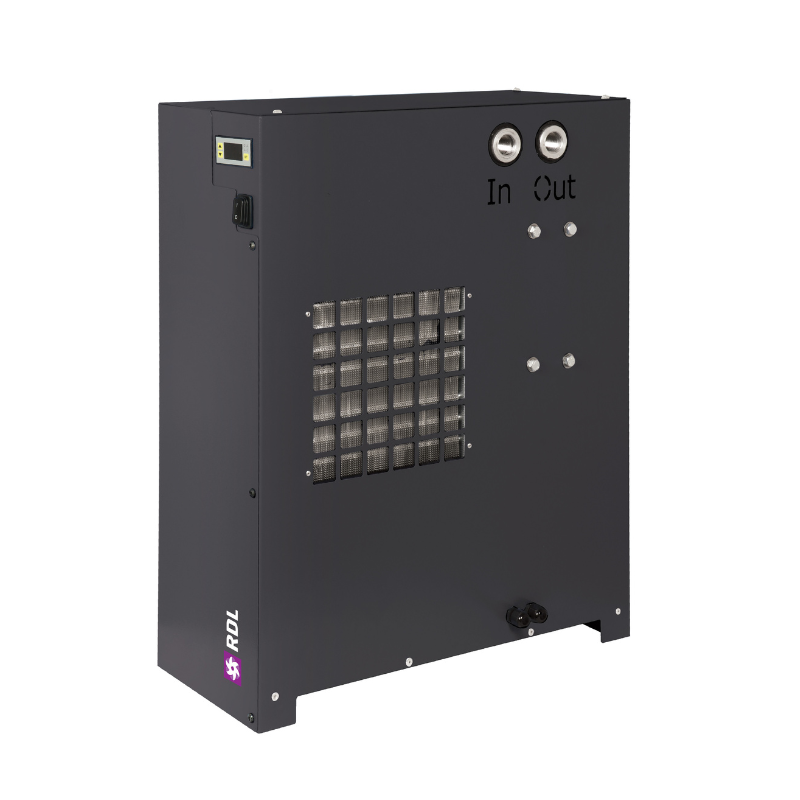

RDL Air Dryer



RDL Air Dryer

Product Code: 22

•  Optimized 3-stage heat exchanger for efficient moisture removal
•  Compact and space-saving design
•  Reduces pressure dew point to +5°C
•  Air-cooled refrigerant system using R513a
•  Reliable and cost-effective drying solution
•  Eco-friendly construction with recyclable materials

  • Product Information
  • Technical Specification

The RDL Refrigerated Compressed Air Dryer is the next evolution of the RDP series, designed to offer efficient moisture removal while optimizing space, cost, and performance. Built with a focus on essential components, this dryer maintains high reliability and air quality while reducing manufacturing costs.

Utilizing an ultra-compact 3-stage heat exchanger, the RDL series efficiently removes water:

 1. Air-to-Air Heat Exchanger: Pre-cools incoming humid air using cold outgoing air.
 2. Air-to-Refrigerant Heat Exchanger: Cools air, condensing moisture for removal.
 3. Integrated Demister: Separates and eliminates condensed water from the air stream.

Designed with environmental responsibility in mind, the RDL series is manufactured using recyclable materials, ensuring an eco-friendly solution for compressed air drying.


Key Features of RDL Refrigeration Dryers


•  Optimized 3-stage heat exchanger for efficient moisture removal
•  Compact and space-saving design
•  Reduces pressure dew point to +5°C
•  Air-cooled refrigerant system using R513a
•  Reliable and cost-effective drying solution
•  Eco-friendly construction with recyclable materials


Technical Specifications


•  Operating Pressure: Up to 13 bar
•  Maximum Ambient Temperature: 1.5°C to 45°C
•  Pressure Dew Point: +5°C
•  Flow Rate: 35 to 235 Nm3/h
•  Refrigerant Type: R513a
•  Type of Cooling: Air-cooled


Applications of RDL Refrigeration Dryers


The RDL refrigeration dryer is designed for light industrial applications, providing reliable moisture control in:

•  Small-Scale Manufacturing & Assembly Lines
•  Workshop Compressed Air Systems
•  Pneumatic Tool Operations
•  General Air Treatment in Light Industrial Environments


Why Choose the RDL Refrigeration Dryer from Nitrogenium?


•  Compact and cost-effective without compromising performance
•  Reliable moisture removal to maintain compressed air quality
•  Environmentally friendly design with recyclable materials>
•  Easy to install and maintain, reducing downtime
•  Optimized efficiency with an air-cooled refrigerant system

Data Table





Model Flow (m3/h) Connection Pressure Drop (bar) Power Supply (V-Hz) Power/Consumption (kW) Cooling Flow (m3/h) Heat Rejection (kW) Refrigerant Dimensions (W x L x H) mm Mass (kg)
RDL 35 35 G 1/2” BSP-F <0.2 1~230-50* 0.17 / 0.13 250 0.3 R513a 236 x 532 x 665 23
RDL 75 75 G 3/4” BSP-F <0.2 1~230-50/230-60 0.40 / 0.25 250 0.6 R513a 236 x 532 x 665 24
RDL 100 100 G 1” BSP-F <0.2 1~230-50/230-60 0.43 / 0.29 250 0.8 R513a 236 x 532 x 665 30
RDL 180 180 G 1” BSP-F <0.2 1~230-50/230-60 0.52 / 0.37 700 1.5 R513a 236 x 573 x 763 46
RDL 235 235 G 1 1/2” BSP-F <0.2 1~230-50* 0.61 / 0.46 700 1.9 R513a 236 x 573 x 763 49
RDL 380 380 G 1 1/2” BSP-F <0.2 1~230-50* 1.1 / 0.8 1100 3.1 R513a 288 x 778 x 826 70
RDL 480 480 G 1 1/2” BSP-F <0.2 1~230-50/230-60 1.2 / 1.0 1100 3.9 R513a 288 x 778 x 826 72
