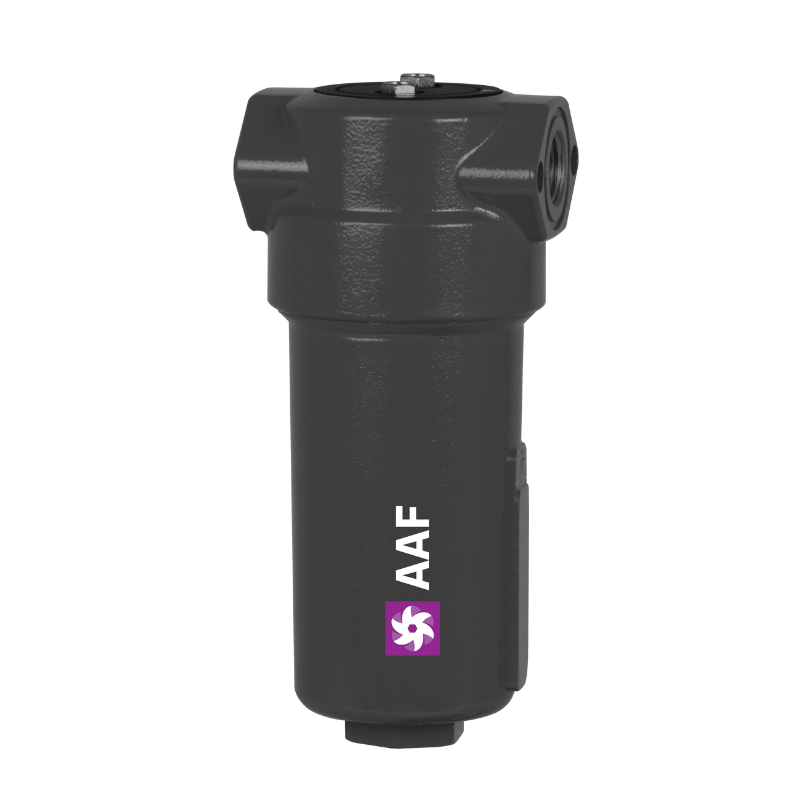

AAF Series



AAF Series

Product Code: 001

•  High-efficiency filtration for particles, water, oil aerosols, vapors, and odors.
•  ISO 8573-compliant air quality with 5 filtration grades (P, R, M, S, A).
•  Corrosion-resistant KTL cataphoretic coating for harsh environments.
•  Reliable internal and external condensate drain options.
•  Broad range of flow capacities to suit various compressed air systems.
•  Easy installation and maintenance with advanced connection design.


  • Product Information
  • Technical Specification

The AAF Series Compressed Air Filters by Nitrogenium are designed to safeguard your downstream compressed air systems and equipment. These high-performance filters ensure the removal of solid particles, oil aerosols, water, hydrocarbons, vapors, and odors from compressed air systems operating up to 16 bar pressure.

Manufactured to meet ISO 8573 air quality standards, AAF compressed air filters can be equipped with five different grades of filter elements (P, R, M, S, and A), allowing precise filtration to meet your system’s requirements. For efficient condensate drainage, optional internal and external condensate drains can be integrated into the filter housing.

With a focus on functionality, reliability, and ease of maintenance, the AAF series filters are designed to offer seamless installation and extended usability, covering applications with extremely low to high airflow capacities and small-sized pipe connections.

Enhanced with KTL cataphoretic coating on internal and external surfaces, AAF filters provide exceptional corrosion resistance and chemical durability, ensuring long-lasting performance even in aggressive industrial environments. The coating serves as an excellent primer for the powder paint finish, offering additional protection.


Key Features:


•  High-efficiency filtration for particles, water, oil aerosols, vapors, and odors.
•  ISO 8573-compliant air quality with 5 filtration grades (P, R, M, S, A).
•  Corrosion-resistant KTL cataphoretic coating for harsh environments.
•  fReliable internal and external condensate drain options.
•  Broad range of flow capacities to suit various compressed air systems.
•  Easy installation and maintenance with advanced connection design.


Applications:

•  Manufacturing plants
•  Automotive production
•  Food and beverage industries
•  Pharmaceutical production
•  Chemical processing



Why Choose Nitrogenium’s AAF Compressed Air Filters?

• Premium air filtration systems designed for industrial efficiency.
• Protection for downstream equipment and improved compressed air quality.
• Durable construction with corrosion resistance for extended service life.
• Trusted supplier of high-quality compressed air purification solutions.


Standard Conditions -

AAF – Compressed Air Filters

Built to meet ISO 8573-1 air quality standards, these filters provide exceptional protection for compressed air systems. With a durable aluminum housing and multiple filtration grades, they effectively remove oil, water, and particulates, ensuring long-lasting equipment performance.


AAF Filter Housing Table

FILTER HOUSING PIPE SIZE [inch] FILTER ELEMENT FLOW CAPACITY DIMENSIONS [mm] VOLUME [l] WEIGHT [kg]
      [Nm³/h] [scfm] A B C D
AAF 0006 1/8 03528 10 6 105 55 14 50 0,07 0,23
AAF 0016 1/4 05528 18 11 125 55 14 70 0,09 0,24
AAF 0026 1/4 03844 25 15 145 73 18 50 0,22 0,42
AAF 0036 3/8 03844 30 18 145 73 18 50 0,22 0,42
AAF 0046 1/4 06050 35 22 189 88 32 60 0,44 0,72
AAF 0056 3/8 06050 60 35 189 88 32 60 0,45 0,71
AAF 0076 1/2 07050 78 46 189 88 32 80 0,45 0,70
AAF 0106 3/4 14050 120 70 257 88 32 150 0,64 0,78
AAF 0186 1 12075 198 116 261 125 37 160 1,4 1,9
AAF 0306 1 22075 335 197 361 125 37 250 2,0 2,4
AAF 0476 1 1/2 32075 510 300 461 125 37 350 2,6 2,6
AAF 0706 1 1/2 50075 780 459 641 125 37 530 3,6 3,5
AAF 0946 2 51090 1000 588 698 164 49 520 6,0 6,1
AAF 1506 2 76090 1500 882 944 164 49 770 8,3 8,0
AAF 1756 2 1/2 76090 1680 990 944 164 49 770 8,4 7,6
AAF 2006 3 51140 2160 1270 802 242 60 630 16,7 14,1
AAF 2406 3 75140 2760 1620 999 242 60 770 21,3 16,7
